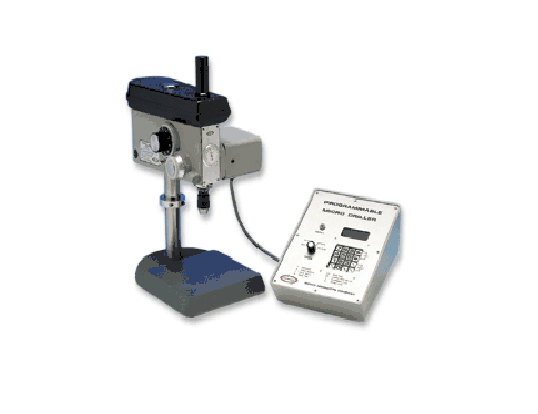

MODEL 0708 (Links to any Drill Press or Milling / Drilling Machine)

Microprocessor - Controlled Quill Feed
Microprocessor - Controlled Quill Feed
Item# M-0708
$2,154.00

Product Description

Microprocessor - Controlled Quill Feed
  • Ideal for automatic peck drilling and reaming cycles.

  • Initiate and program operation from controller keyboard.

  • Programmable dwell, chip clearing offset and ability to decrease peck size permits routine drilling of deep holes.

  • Peck Steps: .001" - 1.4" / .02 - 35.6mm.

  • Accurate Hole Depths: (+/- .001" / .02mm)

  • Quill Travel: 1.4" / 35.6mm; Max. Quill Force: 35 lb./16kg.

  • Controlled Feed Rates: .01 - 30 IPM / .25 -750 mm/min.

  • 8.5" / 21 cm (L) X 6.5" / 17 cm (W) x 4.5" /11 cm (H).

  • 115 VAC, 50 / 60 Hz, .3A, 40W.

  • Optional foot switch.

  • Factory-installed

  • ( Price does not include the factory-installed Drill Press of your choice.)
