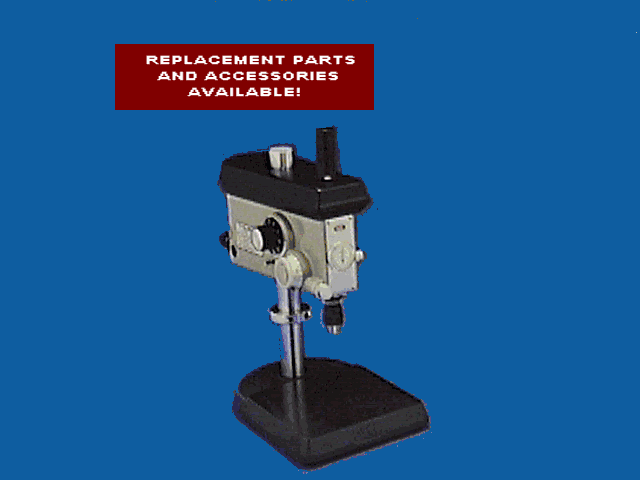

New Servo Precision Drill Presses Series 7000

New Servo Precision Drill Presses Series 7000
- Smooth, Easy and Quite Operation.

- Inch and Metric Versions.

- Keyless, Albrecht Chuck Version 0-1/8"/0-3mm (optional 0-1/16"/0-1.5mm); quick and easy drill changes.

- WW collet Versions .0039"-252"/.1 mm-6.4 mm; less drill run out and improved accuracy because tool is supported closer to spindle.

- Adjustable, Sensitive Quill Lever feel the drill in cutting motion for less drill breakage and scrapped parts.

- Quill Travel 1.5"/38.1mm.

- Infinitely Variable Spindle Speeds 200-20,000 rpm over two belt ranges (low ration: 200-4,000 rpm: high ratio: 1,000-20,000 rpm).

- Spindle Runout .0002"/0.005 mm TIR.

- Dial Gauge .001" or .05 mm/div.; for accurate depth control.

- Dial Gauge Zero Set Knob.

- Course Depth Dial .1"/div. version or 5mm/div. version.

- Adjustable Down Stop .001" or .05 mm/div.; for blind-hole drilling.

- Head column lock.

- Fine Grain, Ground Cast Iron Base Except Models 7030/7130; 7040/7140; 7070/7170 which have cast aluminum base; elbow also of fine grain cast iron (models 7040/7140, 7070/7170).
