New Servo Power Feeds For Sale ECF 140

New Servo Power Feeds For Sale ECF 140

SPECIFICATIONS FOR NEW SERVO POWER FEED
TYPE 140

Semi-automatic machining on Class 1 mills to 3 hp: to 140 in.lb/15.8 N.m (half-wave series motor)


Peak torque: to 140 in.lb/15.8 N.m (half-wave series motor)


Intermittent torque: 105 in.lb/11.9 N.m.


Continuous torque: 90 in.lb/10.2 N.m.


Variable feed rate: table/cross .75-25 ipm/19-635 mmpm; knee 0-12 ipm/0-305 mmpm.


Rapid traverse: table/cross 35 ipm/889 mmpm; knee 12ipm/ 305 mmpm


Gear reduction ratio: 72:1 (motor to lead screw shaft).


Helical gearing and torque limiting friction safety clutch.


Electrical: 110V, 50/60 Hz, 2.5a.


Approx. weight: 15 lb/6.8 kg.

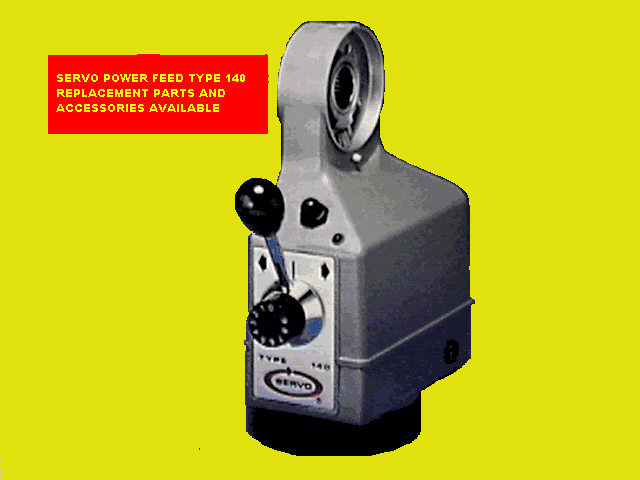

SERVO POWER FEEDS TYPE 140
SERVO POWER FEEDS TYPE 140
Servo Power Feeds Type 140 and Accessories are available for many Milling Machine Types. For best Selection, Pricing and Availability call and speak to one of our Techincal Staff members at 1-800-726-8438. Double click on picture for better view.
ECF 140
